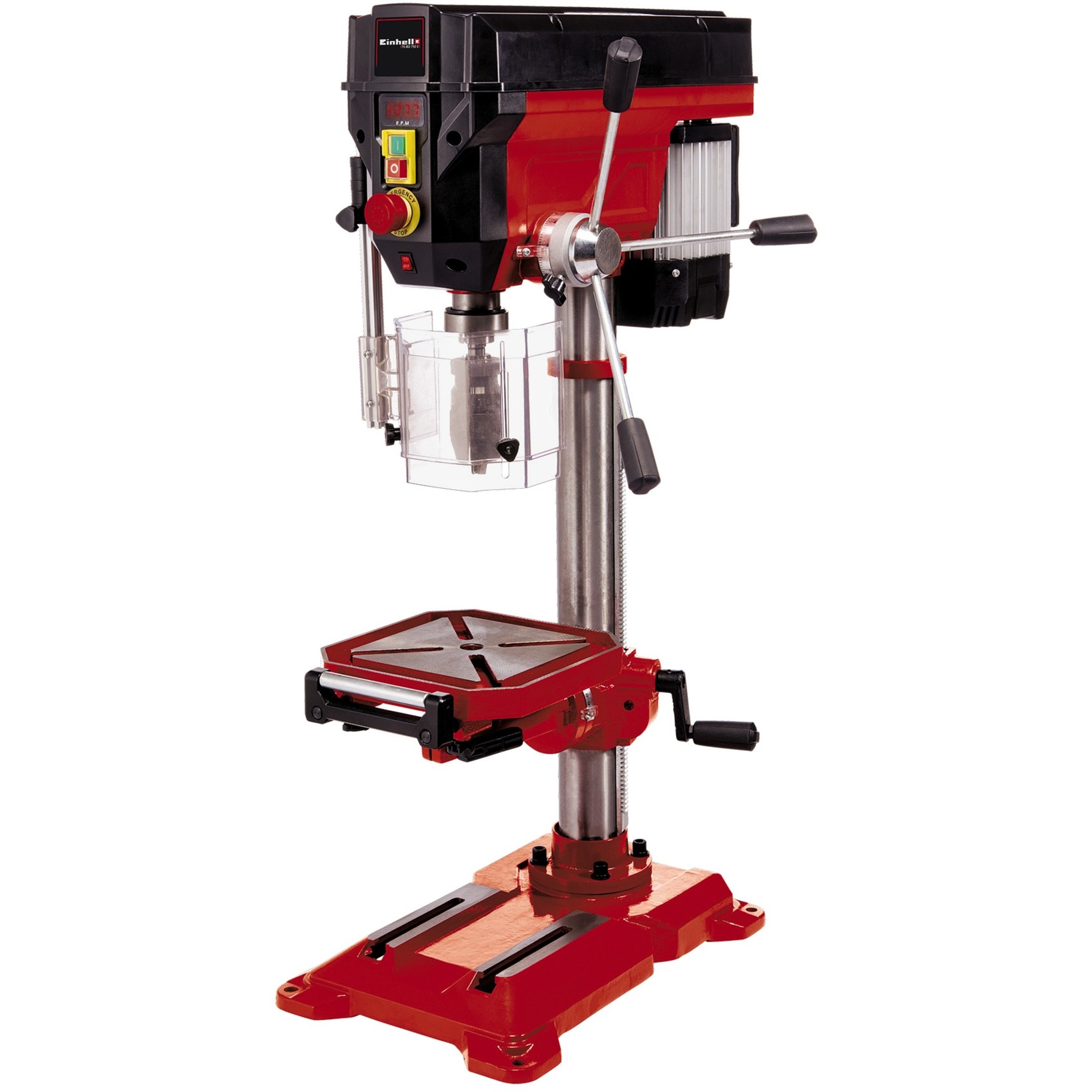

Column drilling machine TC-BD 750 E
| type | drill | ||
| Color | red/black | ||
| EAN | 4006825617771 | ||
| Manufacturer No. | 4250715 | ||
| Purpose of use | For precise holes and drilling in metal, plastic, wood | ||
| Operating mode | Mains connection | ||
| Power supply | 230 volts, frequency 50 Hz | ||

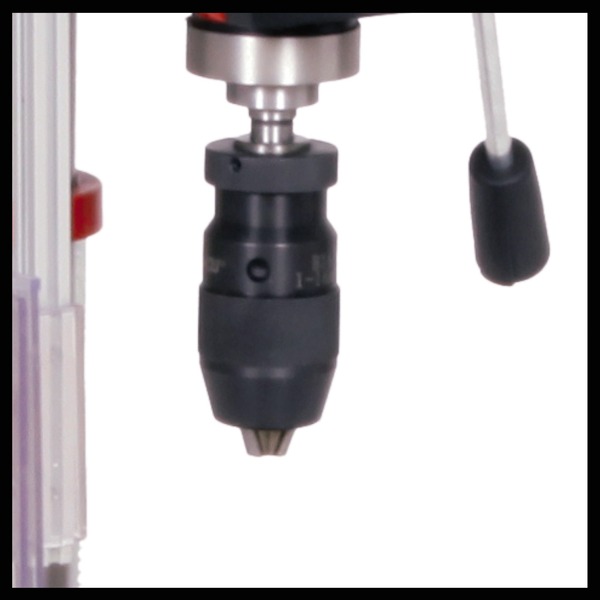

| Tool holder | Keyed drill chuck, 1 mm - 16 mm | ||

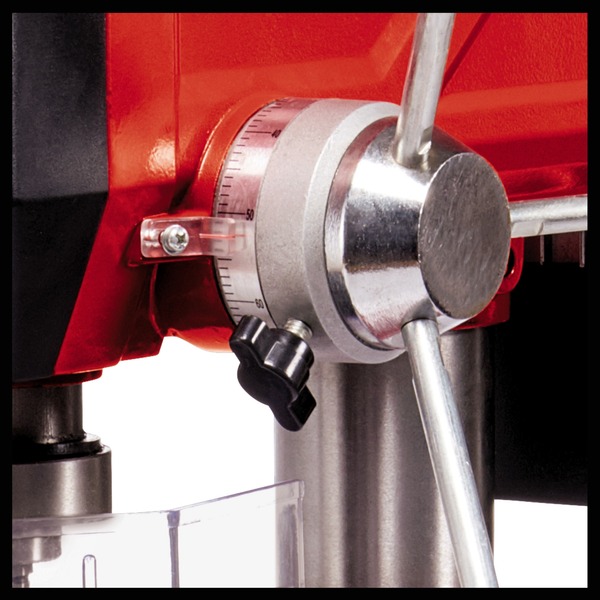

| Operation | Speed continuously adjustable, adjustable depth stop | ||
| Display | LCD display for current speed | ||
| Handle | Rubberized handles on the turnstile | ||
| lighting | LED work light to illuminate the drilling table | ||

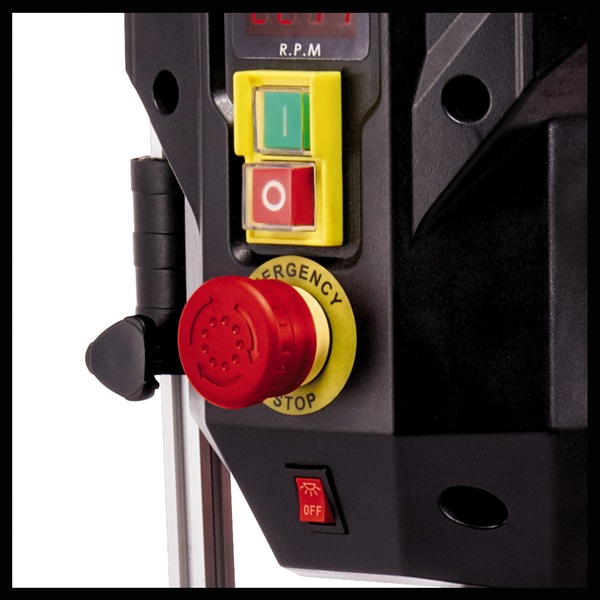

| Security | Safety spindle protection, emergency stop switch | ||
| Motor | Smooth and quiet induction motor | ||
| Gear stages | Multi-course | ||
| Performance | Input power: 750 watts | ||
| Drilling stroke | 80 mm | ||

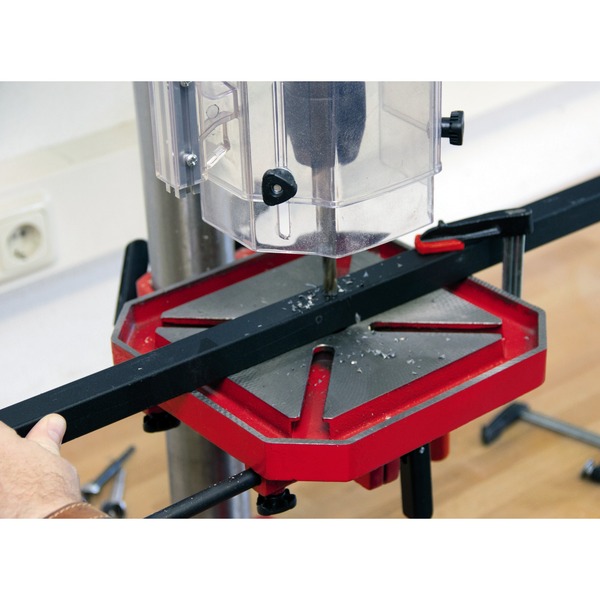

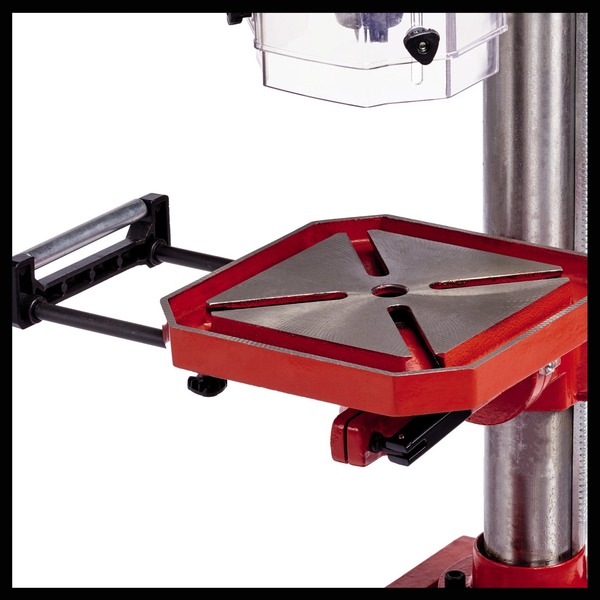

| drilling table | Size | Width 243 mm, depth 243 mm | |
| Discharge | 152 mm | ||

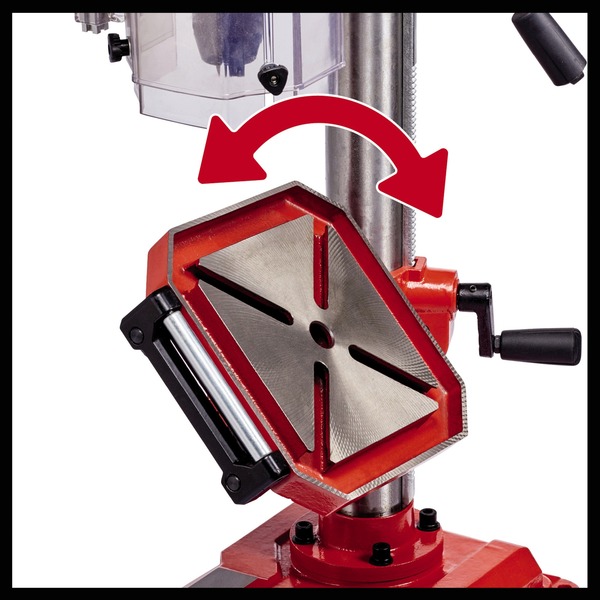

| Tiltable | from -45 ° to 45 ° | ||
| Table height adjustable | |||
| speed | Adjustable speed | from 450 rpm to 2,500 rpm | |
| Operating noise | Sound pressure level | 81.2 dB(A) | |
| Sound power level | 90.3 dB(A) | ||
| Uncertainty K | 2 dB(A) | ||
| feature | MK2 holder for Morse taper drills, ball-bearing drill spindle | ||
| Further information | Drilling table with extension | ||
| Notice | Max. power S2 (750 W | 15 min) | ||
| Accesories | available | Vice for workpiece fixation, operating instructions | |
| Dimensions | Height: 955 mm | ||
| Base plate | Width: 456 mm x Depth: 304 mm | ||
| Weight | 44.4 kg | ||
